126mm PDC Diamond Drill Bit Tungsten Carbide Matrix Non-Core Bit High Wear Resistance for Exploration and Curtain Grouting

Name: 126mm PDC Diamond Drill Bit Tungsten Carbide Matrix Non-Core Bit High Wear Resistance for Exploration and Curtain Grouting
Brand: Shandong Yikuang Drilling Technology Co.,Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Model Number:

126mm

Contact WhatsApp

Add to Quote List View Quote List

Description

Product Description

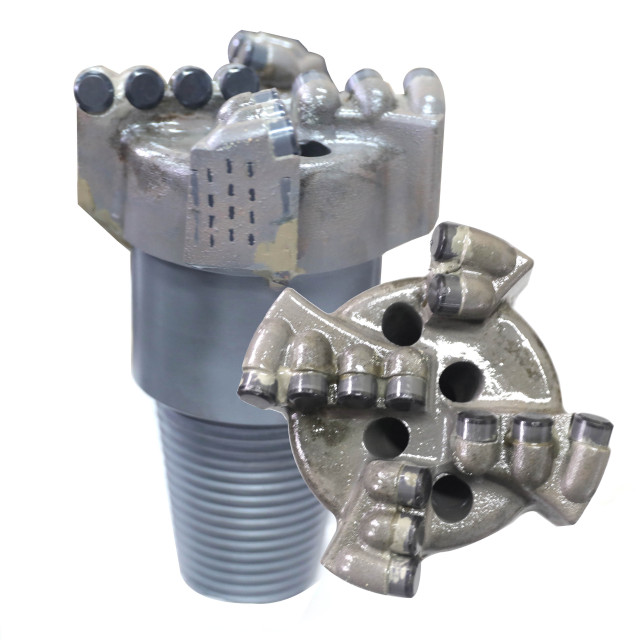

126mm PDC Diamond Drill Bit

Cutter Material: Equipped with high-quality 1308 petroleum-grade PDC cutters, ensuring excellent wear resistance and cutting efficiency.

Drill Body: Sintered with a tungsten carbide matrix for high strength and durability.Welding Technology: Silver-based welding prevents cutter wear and extends service life.Application: Designed for drilling in hard formations such as siliceous limestone and sandstone. Widely used in mining exploration, hydrological wells, and grouting projects.Specifications: Available in a full range of diameters from 60mm to 153mm to meet diverse drilling needs.Key Features:✔ High wear resistance and stable performance✔ Reliable cutter bonding to prevent edge loss✔ Suitable for hard, abrasive formations

126mm PDC Diamond Drill Bit Tungsten Carbide Matrix Non-Core Bit High Wear Resistance for Exploration and Curtain Grouting

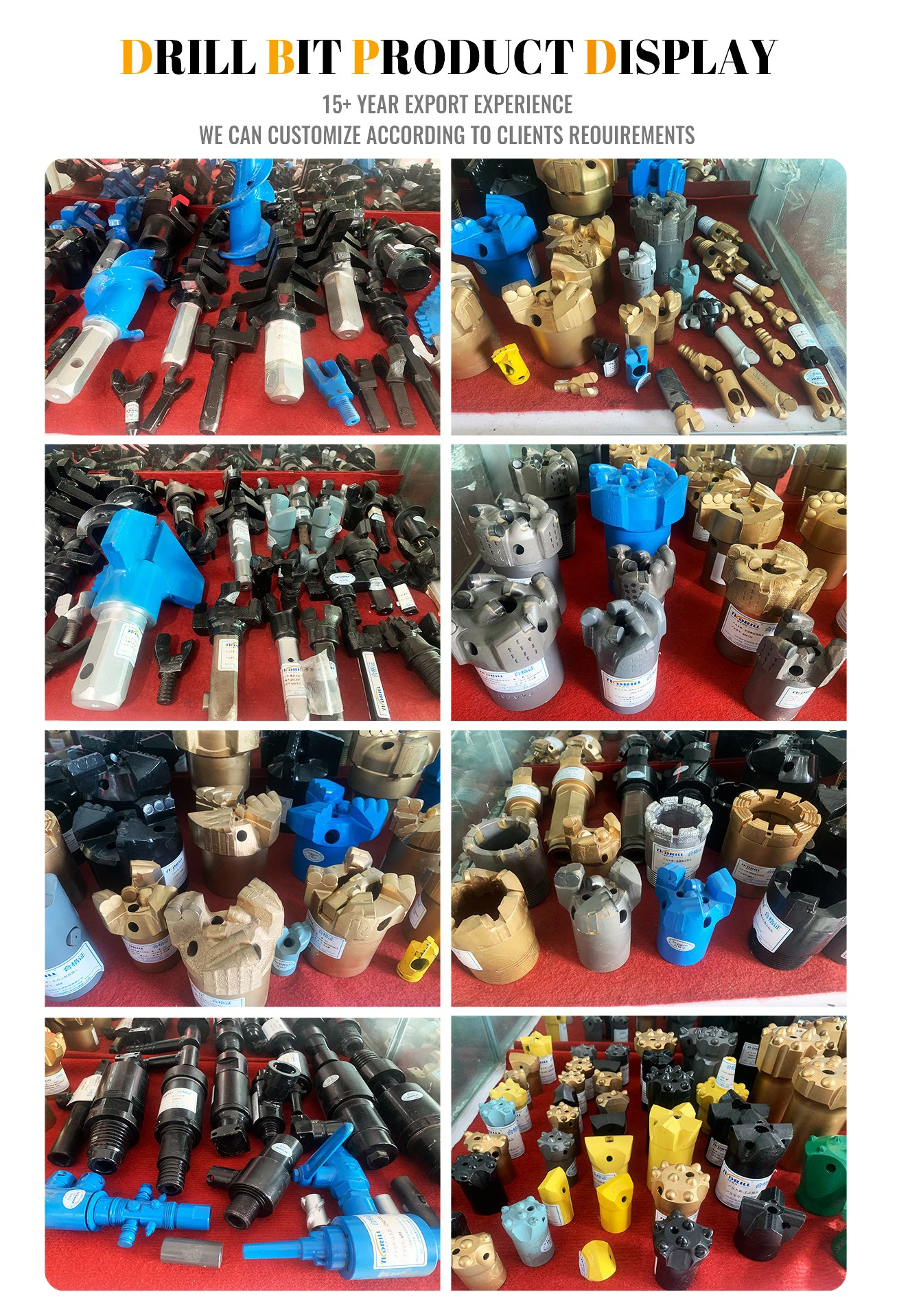

DRILL BIT PRODUCT DISPLAY

Specification

Name	Regular diameter (customizable)	Cutters(PDC)	Bit type	Adaptive bed	Weight(kG)
Tungsten carbide sintered body Flat top coreless bit	65mm	1308*5pcs	Flat piece/Domed piece General type PDC bit	Medium hard rock F≤6	1.4
Tungsten carbide sintered body Flat top coreless bit	75mm	1308*6pcs	Flat piece/Domed piece General type PDC bit	Medium hard rock F≤6		1.7
Tungsten carbide sintered body Flat top coreless bit	91mm	1308*7pcs	Flat piece/Domed piece Enhanced type PDC bit	Medium hard rock F≤8	3.1
Tungsten carbide sintered body Flat top coreless bit	113mm	1308*10pcs	Flat piece/Domed piece Enhanced type PDC bit	Medium hard rock F≤8		5.5
Tungsten carbide sintered body Flat top coreless bit	133mm	1308*13pcs	Flat piece/Domed piece/Super strong oil piece Super strong PDC bit	Hard rock F≤11	6.5
Tungsten carbide sintered body Flat top coreless bit	153mm	1308*17pcs		Hard rock F≤11		12

Packing & Delivery

Each drill bit is packed in a foam box.If you purchase a small quantity, use cartons to pack multiple foam boxes.If you purchase a large quantity, use wooden boxes to pack multiple cartons or directly pack multiple foam boxes.
