XYX-3 trailer mounted drilling rig with BW160 mud pump

Name: XYX-3 trailer mounted drilling rig with BW160 mud pump
Brand: Shandong Yikuang Drilling Technology Co.,Ltd.
SKU: 00199
Availability: InStock
Rating: 5 (1 reviews)

No.00199

The drilling rig is a shallow/medium-deep hole spindle type core drilling rig. This machine is mainly used for diamond drilling and cable drilling projects. It is also a core sample project that can be drilled in deep well projects. It uses an automotive transmission, and a heavy-duty diesel engine for power.

Name:

XYX-3 trailer mounted drilling rig

Dimension(L*W*H):

4.5*2.1*2.2

Core Components:

Motor, Gear, Gearbox

Type:

Rotary Drilling Rig

Contact WhatsApp

Add to Quote List View Quote List

Description

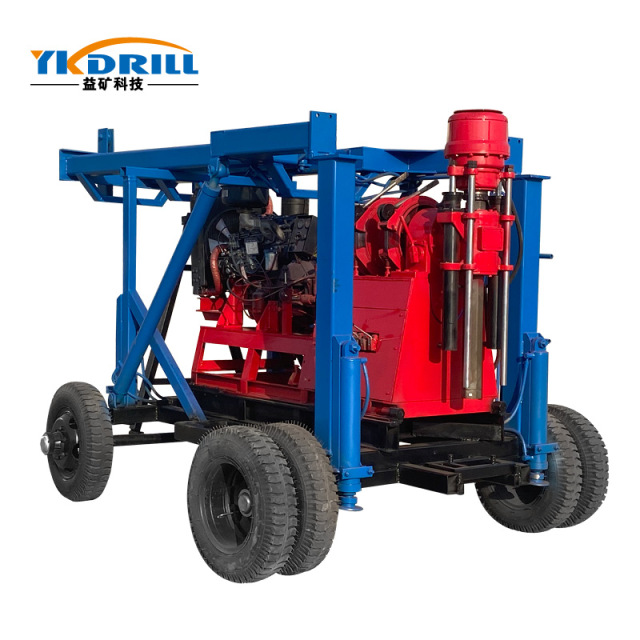

High quality export more than 10 years hydraulic type drilling rig with BW160 mud pump

Drillingdepth	m			100			250	300	600
Drilling DI	mm			300			200	150	75
Open hole DI	mm			300
End hole DI	mm			75
Drilling rod	mm			Φ60
Drilling angle				90°-65°
Rotary Spindle
Spindle forward speed					r/min			37-1082
Spindle reverse speed					r/min			42-190
Spindle stroke					mm			600
Spindle inner diameter					mm			80
Spindle lifting capacity					KN			60
Main Winch ( drive hydraulic system)
Single line lifting speed						m/min		0-60
wireline rope diameter						mm		12.5
Tightrope diameter						mm		14
Hoist single line lifting capacity						KN		45
Roller diameter						mm		200
Roller cubic measure						m		50
Mud pump
Horizontal Triplex BW-200 mud pump or bigger BW-250 mud pump
Displacement			L/min					200
Work pressure			Mpa					4-6
Water inlet caliber			mm					65
Water to exit caliber			mm					37
Gear Oil pump
Duplex gear oil pump CBF-F532/16
Front displacement,pressure								63mL/r 20Mpa
Behind displacement,pressure								25mL/r 20Mpa
Drilling rig Power
Diesel engine		Hp						42kw
Electric motor		KW						Y180L-4 22KW
